三井電気精機は顧客ニーズにあった研究開発を進め、特注品を数多く取り扱う技術を発展させ
オンリーワン企業を目指し技術の流れを読み取る想像力を磨き、情熱を持った「ものづくり」を行っていきます。
三井電気精機はお客様の想像を現実にするソリューションパートナーとなり、日々の技術の発展に貢献致します。 |
|
Last Updated on Wednesday, 22 December 2010 11:52 |
|
Table bar coater |
|
|
■Equipment Outline ： This machine uses coating of a wire bar an applicator and coats to base material.
The parts which fixed the tool of coating move with constant speed in a base material top.
Coating which is uniform unlike hand painting can be performed.
■Specification
|
Model
|
ＴＣ－１
|
|
Coating system
|
Tool change system
Please use a wire bar and an applicator.
（Please prepare the tool separetely）
|
|
Coating speed
|
０．６ ～ ６．０ m/min.
|
|
Coating distance
|
Effective stroke ４３０mm
|
|
Coating head load
|
Weight type
It can attach to three one side at 190g per piece.
|
|
Coating board
|
Glass board ３００×５００mm
|
|
Drive system
|
Safety increase explosion proof type induction motor ４０Ｗ
The transfer system by a V belt
|
|
Control system
|
PWM variable control by an inverter
|
|
Out line dimension
|
４９９(W)×７６４(D)×３３４(H)mm
|
|
Power supply
|
AC１００Ｖ ５０／６０Ｈｚ ２Ａ
|
|
|
Last Updated on Saturday, 19 May 2012 11:45 |
|
Read more...
|
|
|
Ultrasonic homogenizer in Soni Mix |
|
It is the machine which took in the performance for which you are asking taking advantage of experience which has continued making ultrasonic homogenization for years.
|
|
Last Updated on Saturday, 19 May 2012 10:04 |
|
Read more...
|
|
The ISO9001 certification acquisition |
|
|
We apply a quality management system to offer a product having a visitor satisfy and aim at the company which the trust can put to the visitor.
October 10, 2006 ISO9001： 2000 certification
registration number JMAQA-2084 |
|
Last Updated on Tuesday, 26 May 2009 10:56 |
|
|

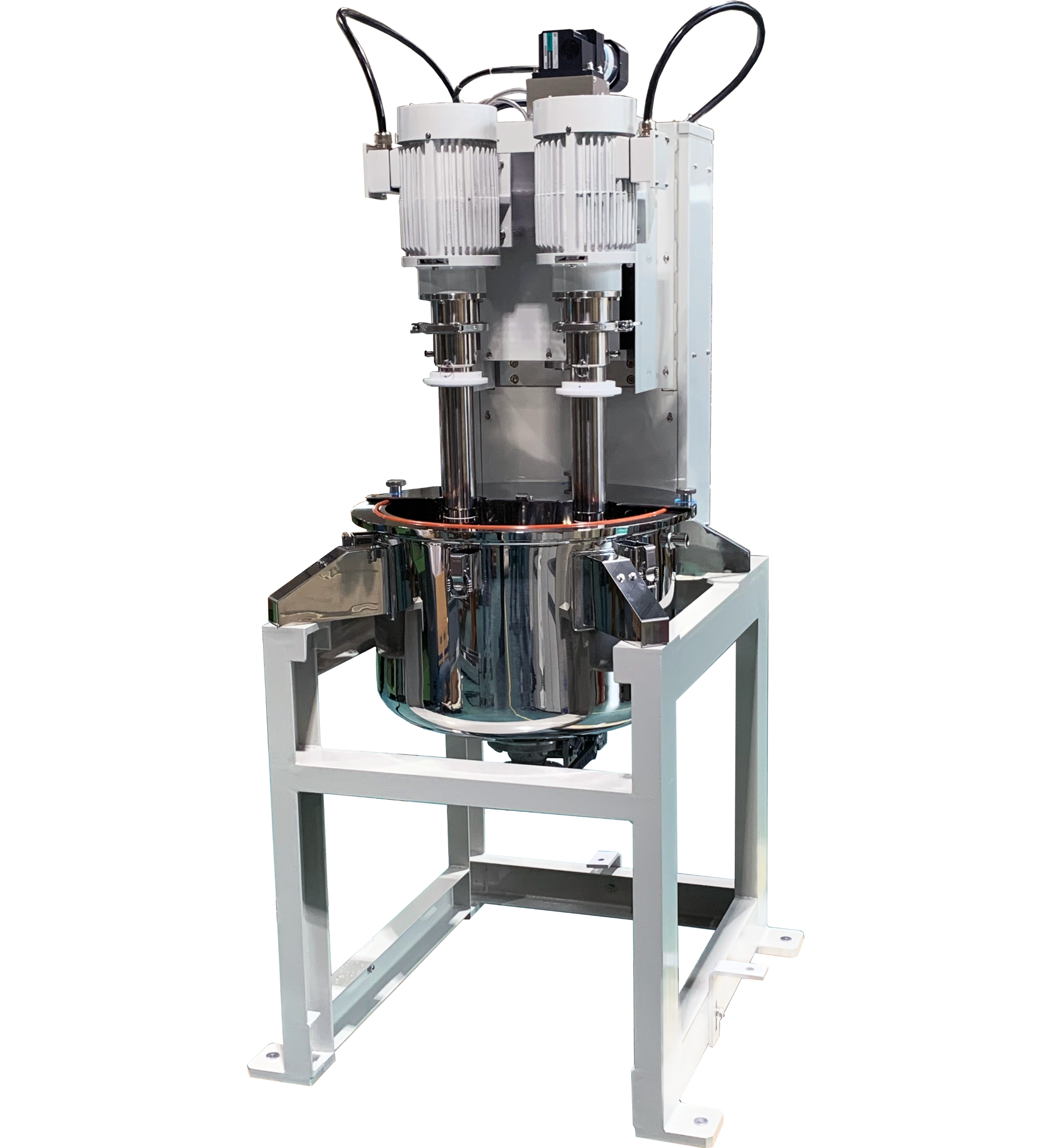

 SpinMix is homogenizer of the spread type with the longtime production results.
It is a high speed mixer having the user of various fields use it. Because it is equipped with each motor of 100W .150W .250W, it can process various samples in a short time. In addition, there is the mixer of the capacity type in 10L .20L other than a desk type, too. I offer it depending on the demand of the visitor. Our SpinMix will offer low price / a high quality to the visitor in a motto.
◆ The SpinMix product details◆ |
|
